HLP05 Endeavour – Handrail Pod Light
Small and Sleek, the Endeavour Handrail Pod luminaire from Vision Lighting is the perfect addition to your lighting project.
Constructed from die-cast aluminum, the Endeavour incorporates quality LED componentry ensuring high lumen output and colour consistency.
Available with a Symmetric or Asymmetric light distribution, and colour temperature options, the Endeavour is made to suit a range of handrail lighting applications.
Engineered and assembled in Australia.
18
People watching this product now!
Technical Specs
| Wattage | 0.96W @350mA |
| Lumens | 115Lm @350mA (3000K Asymmetric) |
| Efficacy | ~120Lm/W |
| CCT | 3000K / 4000K |
| CRI | Ra>70 |
| Distribution | 80 x 120° Elliptical / Asymmetric |
| Dimming | Using Dimmable Driver |
| Heatsink | Die-Cast Aluminium |
| Diffuser | Acrylic |
| Colour | Black / Chrome / Brass |
| IP Rating | IP65 |
| Mounting | 28.5 – 52mm Internal Diameter Handrail |
| Driver | Remote |
| Lifetime (L90B10) | >120,000 hrs |
| Input Voltage | ~2.7 – 2.9V |

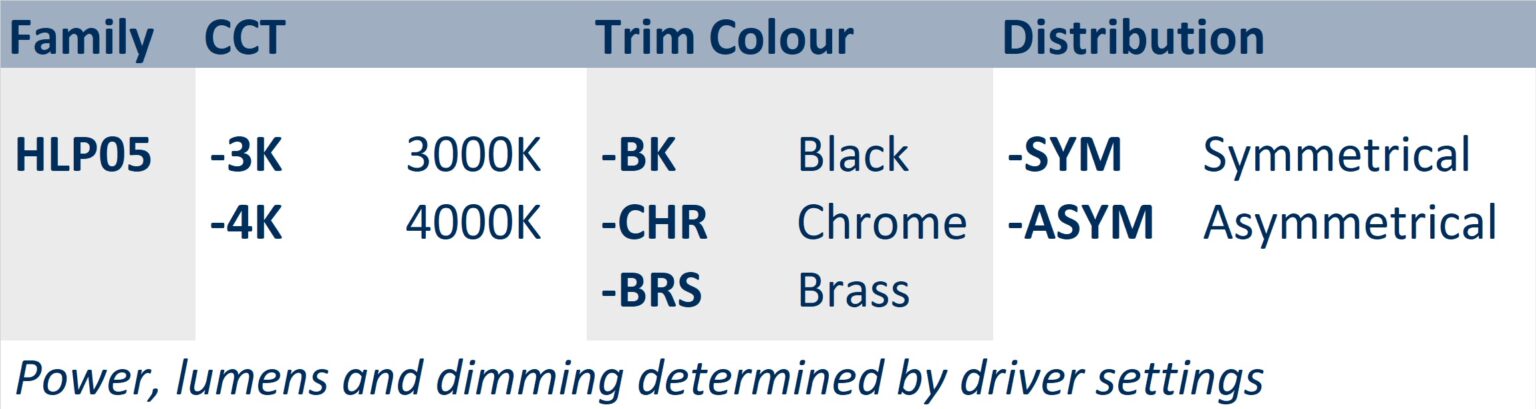

Coding Matrix

Coding Matrix

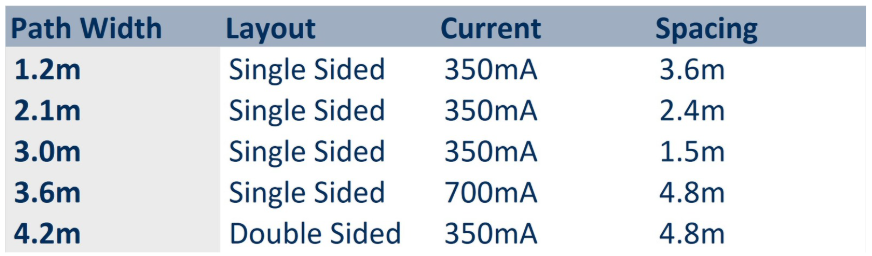

Typical Spacing - Pathways

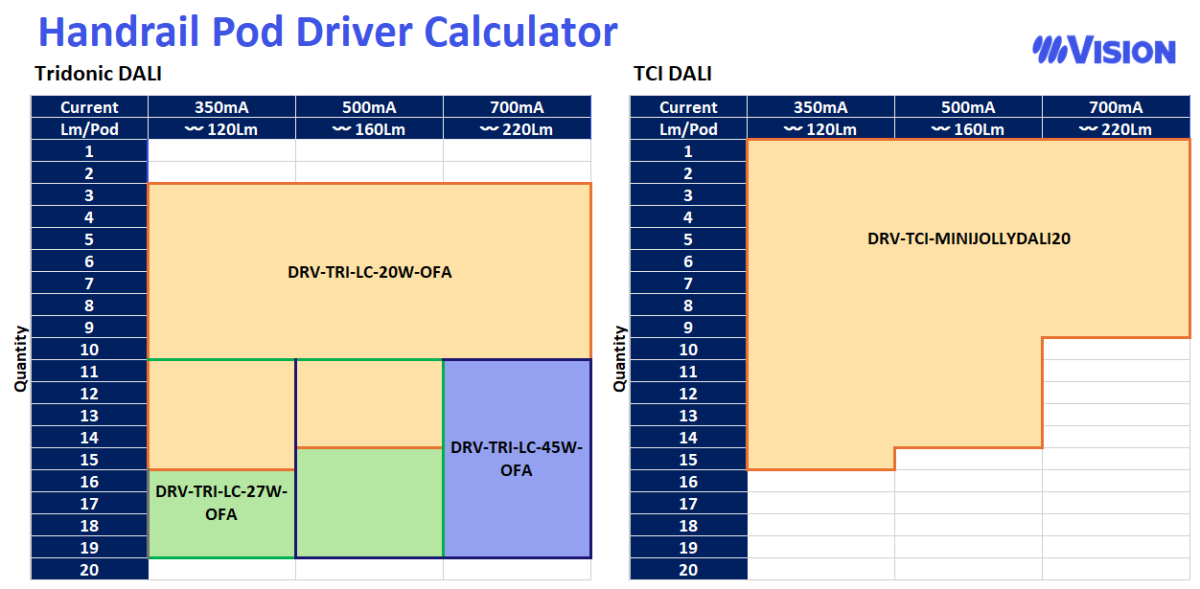

Handrail Pod Driver Calculator
