BATWB Orion – Wide Body Commercial Batten
The Orion batten provides a sleek and classy design with brilliant lumen output. Ideal when a traditional batten simply does not meet the aesthetic requirement.
Steel body with powder coat finish and polycarbonate diffuser for excellent light distribution. High-quality LED componentry used for optimal performance.
Versatile wall, ceiling or pendant mounting options are available. Perfect for office, education, hospital, commercial, and retail lighting applications.
19
People watching this product now!
Technical Specs
| Wattage | 20W | 40W |
| Lumens | 2200 – 4400Lm |
| Correlated Colour Temperature (CCT) | 4000K |
| Colour Rendering Index (CRI) | Ra>90 |

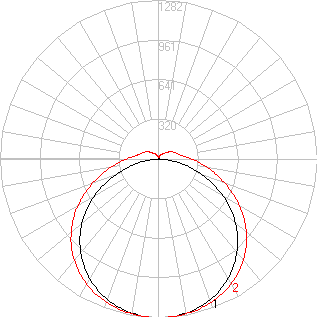

| Beam Angle | 130 Degrees |
| Dimming | DALI Available |
| Material | Steel housing |
| Diffuser | Reeded Polycarbonate |
| Colour | White |
| Mounting | Ceiling Surface | Wall Surface | Pendant |
| IP Rating | IP44 (Ceiling) | IP40 (Wall/Pendant) |
| Lifetime | L80B10>60,000hr | L90B10=39,000hr |
Coding Matrix
